Profile Grinder

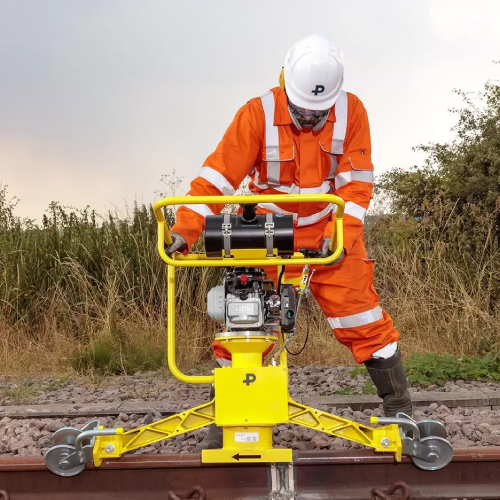

Profile Grinder MR 150

The MR 150 includes a rigid frame made from aluminium alloy, supported with rollers and flanges to equip the frame and grip on to the rail head to ensure a perfect guide in any position.

Inquire Now

Description

The Profile Grinder MR 150 is specially designed to reshape vignole rail heads after aluminothermic or ARC welding and gives accurate grinding on all the rail head surface thanks to its long spread.

  • The rail profile grinder helps to reshape the entire rail head, in an extremely precise manner, after welding.

  • The operator can grind the top and the side of the head in a single operation: actually, this very easy-to-handle grinder is specially designed to work in all positions up to an angle of 90° from the vertical.

  • The grinding wheel always being lowered at right angles to the rail.

  • The flanges and rollers that rest on the rail guarantee perfect guiding of the grinder in all positions

GENERAL FEATURES

HONDA GXR 120 ENGINE

  • 4 stroke engine: (2,6 Kw) à 3600 rpm

  • Wheel rotation speed: 4000 ± 200 rpm

  • Reference wheelbase: 925 mm

  • Weight: 54 Kg

  • Size: 1380 x 600 x 950 mm

  • Vibration level at the handle: 6,18 m/s²

  • Noise level

    • Sound pressure: 87,3 dB

    • Sound power: 102,3 dB



Explore our full range of railway grinding solutions designed for precision rail maintenance and welding support. Have a look at our other railway grinding tools.
